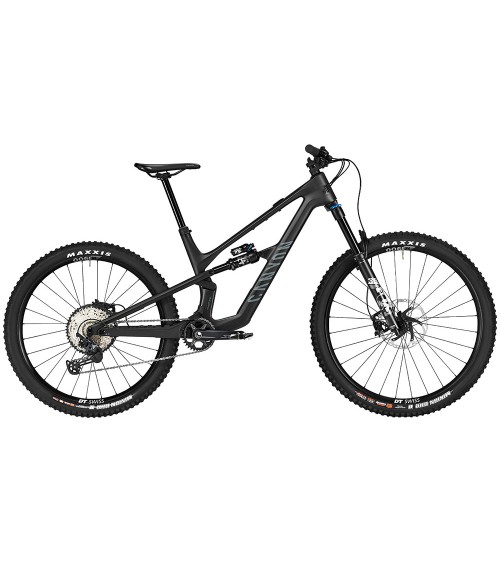

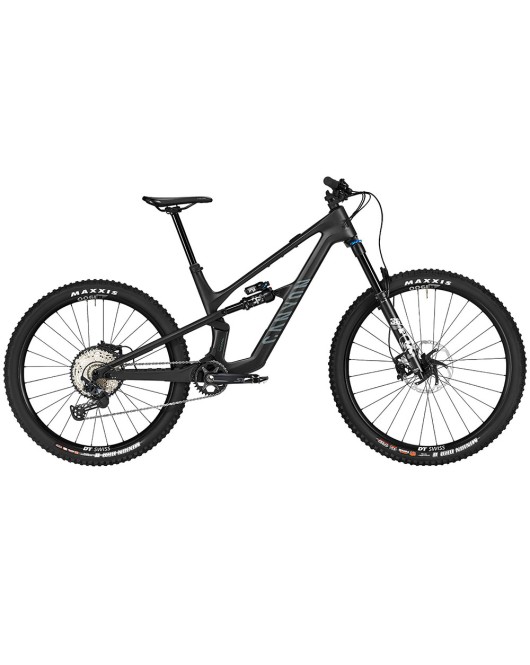

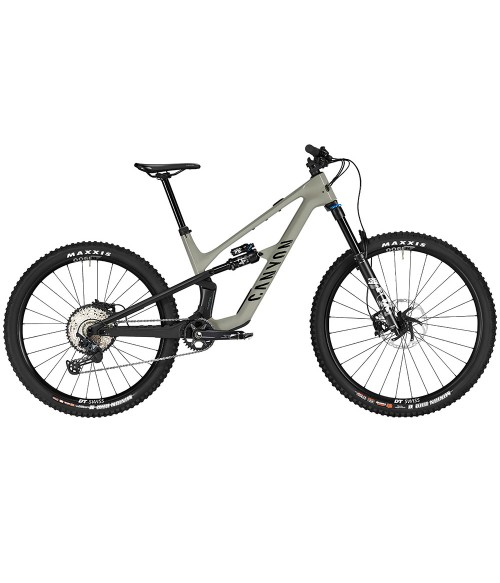

2024 Canyon Spectral CF 7 Mountain Bike

The 2024 Canyon Spectral CF 7 is a high-performance trail bike designed for versatility across various terrains. It features hydraulic disc brakes, tubeless-ready wheels, and a dropper post for quick riding adjustments. A solid choice for riders seeking a capable, reliable, and fun trail bike.

Key Features

Next-generation carbon chassis: Optimized Spectral CF carbon frame with 150mm front and 140mm rear travel, one-piece rocker link for stiffness and performance.
Internal downtube storage: Spacious storage with knee-lever mechanism for secure, easy access even in cold or muddy conditions.
Flip chip for adjustable wheel size: Swap between full 29er or mullet setup (mullet only on XS) for flexible riding preferences.
Trail-taming kinematics: Updated leverage curve and reduced pedal kickback for smooth, sensitive suspension performance while maintaining traction and support.
Maintenance-friendly design: Fully guided internal cable routing, replaceable thread inserts, double-sealed bearings, and proprietary grease fill.
Adjustable geometry: 64° head tube angle, 76.5° seat tube angle, roomy reach, tight chainstays, with flip chip option to steepen angles and raise BB by 8mm.

SPECIFICATION

Frame	Canyon Spectral CF Full-carbon frame \| Category 4 \| 12x148 mm Axle \| Convertable wheelsize and geometry adjustment
Rear Shock	FOX X Performance 2-Position \| Weight: 250 g
Suspension Fork	FOX 36 Rhythm Grip \| 15x110 mm Axle \| 36 mm Stanchion \| 150 mm Travel \| Offset: 44 mm \| Weight: 1.93 kg
Rear Derailleur	Shimano SLX M7100 \| Cage: Long \| Weight: 286 g
Chainguard	Canyon EP1266-01 ISCG05 Plate / Canyon GP0293-02
Shift Lever	Shimano SLX M7100 \| Weight: 143 g
Cassette	Shimano SLX M7100 \| 12-speed
Crank	Shimano SLX M7120 \| 1 Chainring
Bottom Bracket	Shimano BSA BB52 \| BSA HT2 68/73 \| Weight: 98 g
Chain	Shimano CN-M6100
Disc Brake	Shimano SLX M7120 \| 4 pistons
Brake Rotor	Shimano SM-RT76 \| 203 mm \| Weight: 190 g
Wheels	DT Swiss M1900 \| Front: 15x110 mm \| Rear: IS 6-bolt \| Weight: Front 960 g / Rear 1.08 kg
Tyres	Maxxis Minion DHR II Exo / Exo+ \| 2.4" \| Weight: 955 g / 1.08 kg
Thru Axle	Canyon GP0254-01 \| 12x148 mm
Stem	Canyon G5 \| Aluminium \| Clamp: 31.8 mm \| Fork Steer Tube: 1 1/8"
Handlebar	Canyon G5 \| Aluminium \| Clamp: 31.8 mm \| Width: 780 mm \| Rise: 30 mm
Grips	Canyon G5
Saddle	Ergon SM10 Enduro \| Unisex \| Weight: 245 g
Lights	Reflector Set
Pedals	None included
Manuals & Accessories	Canyon Organza Bag, Canyon Smallbox, Canyon Quick Start Guide

2024 Canyon Spectral CF 7 Mountain Bike

Product Code: CYN43001

Brand: Canyon
Product Code: CYN43001
Availability: In Stock

USD 3,599.00
