2024 BMC Teammachine SLR 01 ONE Carbon Road Bike with SRAM RED AXS & Zipp 353 NSW Wheels
$5,600.00 $14,000.00
Product Description

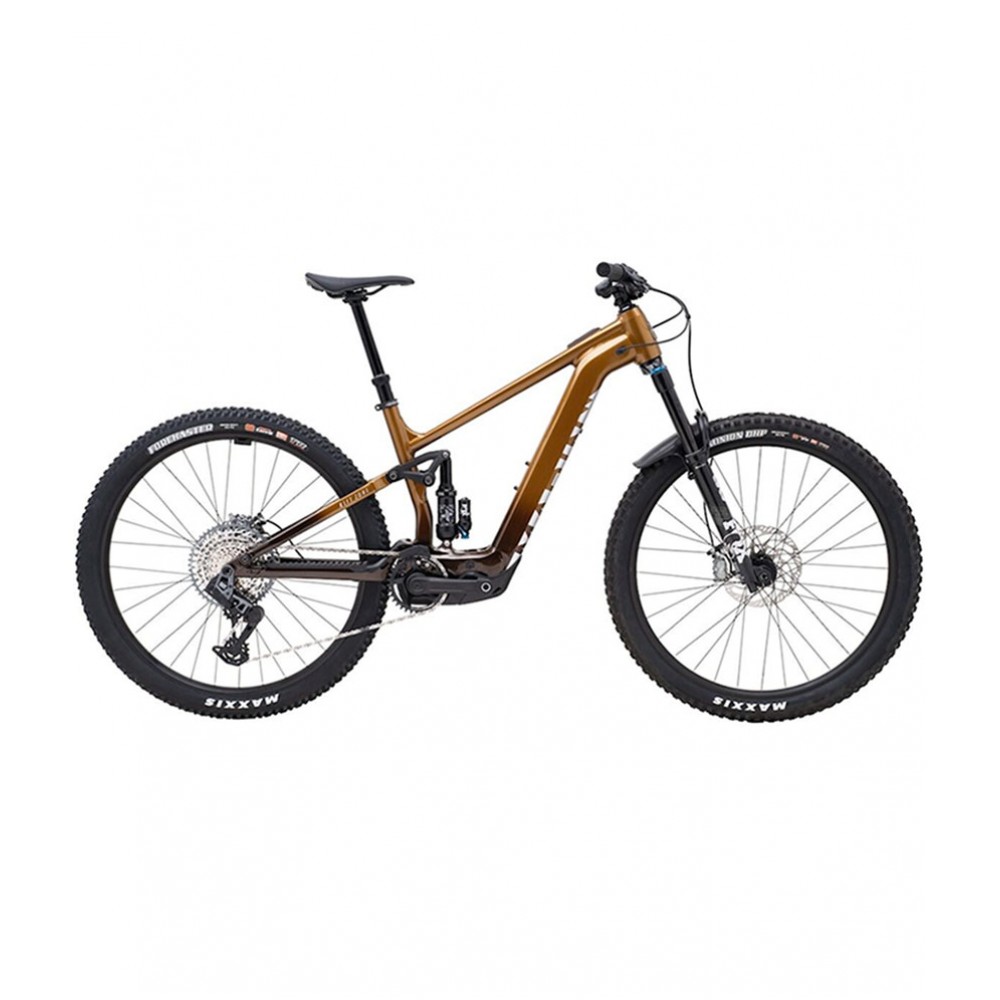

2025 Marin Rift Zone EL XR Electric Trail Mountain Bike
The 2025 Marin Rift Zone EL XR ("Electric Light") trail eMTB combines the capability of full-powered electric bikes in a lighter, more agile package. Designed for trail enthusiasts who prioritize handling and natural ride feel, it features a Series 4 Alloy Lightweight E frame powered by the innovative Bosch Performance Line SX motor. With 150mm of front and 140mm of rear travel, this bike delivers high-performance trail shredding without the weight of traditional e-mountain bikes.
Highlights
- Lightweight Power: Bosch Performance Line SX motor providing 55Nm of torque and 600W peak power.
- Premium Suspension: Fox 36 Performance Elite fork (150mm) and Fox Float X rear shock (140mm).
- Wireless Shifting: SRAM GX AXS T-Type 12-speed wireless drivetrain for perfect shifting in all conditions.
- Elite Braking: Magura MT7 4-piston hydraulic brakes with E-specific pads and HC3 levers.
- Long-Travel Dropper: PNW Loam dropper post with up to 200mm travel and a custom Range Lever.
- Adjustable Geometry: FSA custom headset allows for head tube angle (HTA) adjustments.
Technical Specifications
| Motor & E-System | |
|---|---|
| Motor | Bosch Performance Line SX, 600W, 55Nm Torque, 20MPH Assisted Speed |
| Battery | Bosch 400Wh Internal (Optional PowerMore 250Wh External compatible) |
| Display / Controller | Bosch BRC3100 Systems Controller |
| Remote | Bosch BRC3300 Bluetooth Remote, 22.2mm clamp |
| Range / Charging | 15-55 Miles (~6 hours charging time under ideal conditions) |
| Frame & Suspension | |
| Frame | Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle |
| Front Suspension | Fox 36 Performance Elite, 150mm travel, 29", 110x15 Kabolt, 44mm offset |
| Rear Suspension | Fox Float X, Performance Elite, EVOL Air Spring, Climb Switch, Custom Tune, 210x55mm |
| Drivetrain | |
| Rear Derailleur | SRAM GX AXS T-Type, 12-Speed Wireless |
| Shift Lever | SRAM AXS POD |
| Crankset | e*thirteen e*spec Plus, 160mm length, 34T |
| Cassette | SRAM CS-XS-1275 T-Type, 10-52T |
| Chain | SRAM GX T-Type |
| Brakes | |
| System | Magura MT7 4-piston Hydraulic, E-specific pads |
| Rotors | 203mm Front / 203mm Rear |
| Brake Levers | Magura HC3 |
| Wheels & Tires | |
| Rims | Marin Aluminum Double Wall, 29" diameter, 32mm inner width, tubeless compatible |
| Hubs | Formula DCL-3482 (Rear) / Formula DC-711 (Front), 6-Bolt, XD Driver |
| Front Tire | Maxxis Minion DHF 29x2.4" MAXXGRIP, EXO+, Tubeless Ready |
| Rear Tire | Maxxis Forecaster 29x2.4" MAXX TERRA, EXO+, Tubeless Ready |
| Cockpit & Components | |
| Handlebar | Marin Trail 7000 Alloy, 800mm width, 20mm rise |
| Stem | Marin CNC, 35mm length, 35mm bar bore |
| Seatpost | PNW Loam Post with Range Lever (S: 150mm, M/L: 170mm, XL: 200mm), 34.9mm |
| Saddle | Marin Speed Concept |
| Headset | FSA Custom, Adjustable HTA |
*Specifications are subject to change without notice. Estimated range varies by rider weight and terrain.
