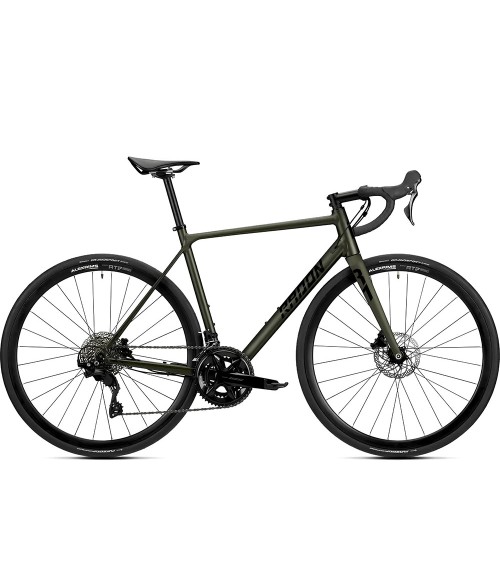

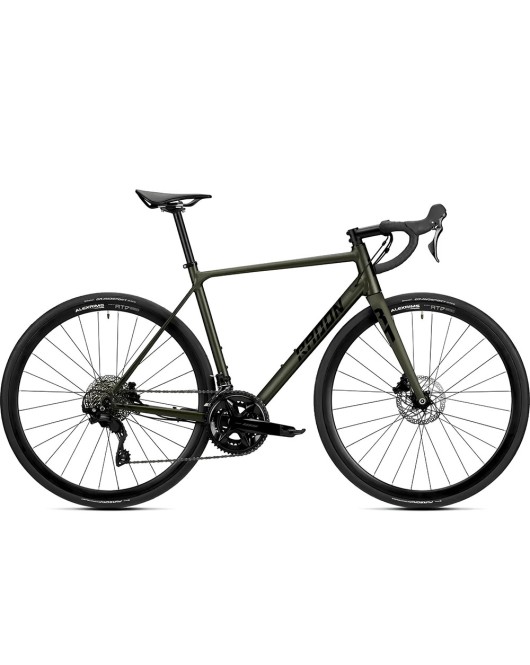

2024 Radon R1 105 Road Bike

The 2024 Radon R1 105 is a high-performance road bike engineered for speed, comfort, and control. Featuring a lightweight aluminium frame with a full carbon fork, this bike delivers maximum efficiency and responsiveness on the road. Ideal for both training and recreational rides, the R1 105 combines sleek design with top-tier components for an exceptional cycling experience.

Technical Specifications

Frame	R1; Material: Aluminium; Max Tire Width: 28mm; Hanger: #10240
Fork	R1 Full Carbon
Headset	VP, IS42/IS52; Upper: MH-P08 41.8x6.5mm 45/45°, Lower: MH-P16 52x7mm 45/45°
Stem	LEVELNINE Race, Ø31.8mm; 50cm: 90mm, 53cm: 90mm, 56cm: 100mm, 58cm: 100mm, 60cm: 120mm, 63cm: 120mm
Handlebar	LEVELNINE Wing Race, Ø31.8mm; 50cm: 400mm, 53cm: 420mm, 56cm: 440mm, 58cm: 440mm, 60cm: 460mm, 63cm: 460mm
Saddle	Selle Italia Model X Superflow
Seatpost	LEVELNINE Race, 27.2 x 350mm; Type: Rigid
Pedals	Not included
Grips	RADON performance tape
Rear Derailleur	Shimano 105 RD-R7100, 12-speed
Front Derailleur	Shimano 105 FD-R7100-B, clamp-on
Crank	Shimano 105 FC-R7100, 50/34T; 50cm: 170mm, 53cm: 172.5mm, 56cm: 172.5mm, 58cm: 175mm, 60cm: 175mm, 63cm: 175mm
Shifters	Shimano 105 ST-R7120, 2x12
Cassette	Shimano 105 CS-R7101-12, 11-34
Chain	Shimano DEORE CN-M6100
Brakes	Shimano 105 BR-R7170, flat-mount; Type: Hydraulic Disc
Rims	Alexrims ATD560; Rim height: 30mm, Inner width: 19mm; Tubeless ready ✔; Valves not included; Tape 21-22mm; Milk not included
Spokes	Pillar CDB1415 ED black
Front Hub	VP Modus CLK-170CF, 12/100mm, center-lock
Rear Hub	VP Modus CLK-252R-X12, 12/142mm, center-lock
Tires	Continental Grand Sport Race, 28" x 28mm

2024 Radon R1 105 Road Bike

Product Code: RDN31001

Brand: Radon
Product Code: RDN31001
Availability: In Stock

USD 1,172.00
